Description

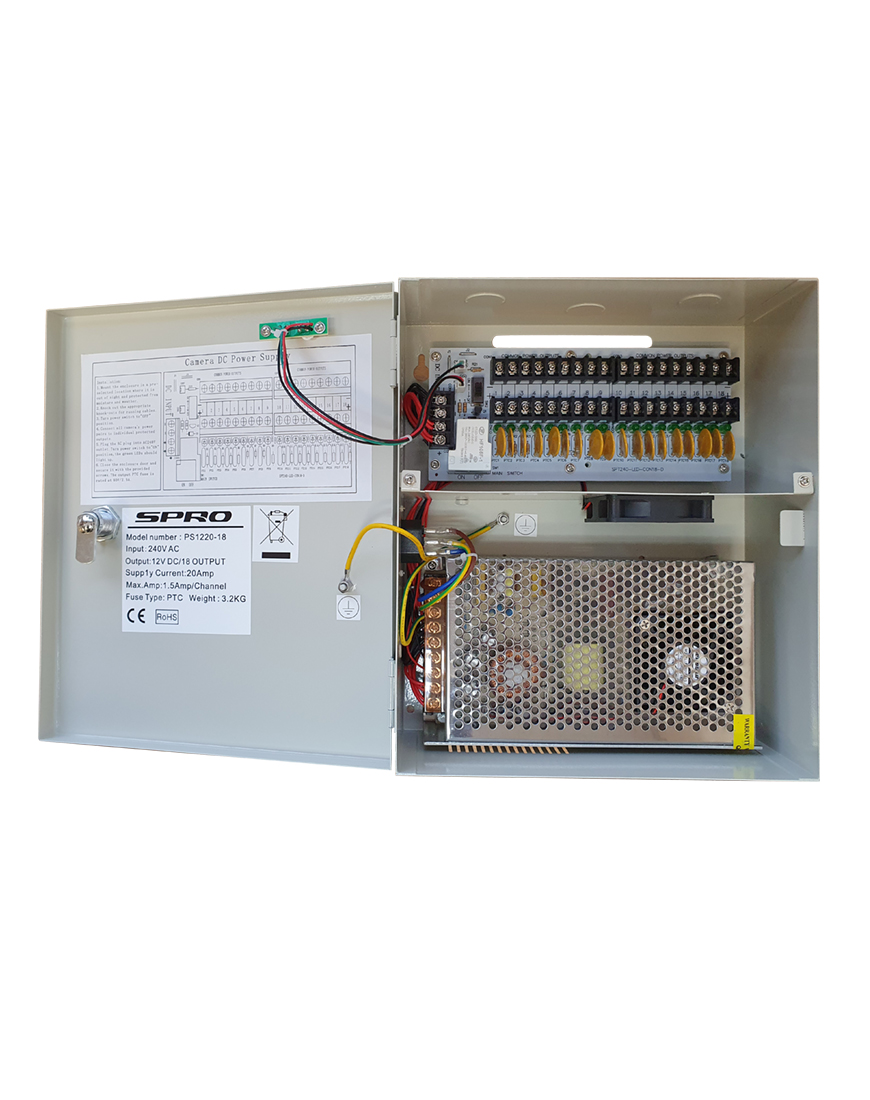

A 16-way DC12V 20A box power supply unit (PSU) in a lockable metal housing. Designed for distributing power to a maximum of 16 surveillance cameras. Auto reset PTC fuses built-in for each output to minimise any interruptions.
Part Number
- PS1220-18
PSU
- Box PSU
| Specifications: | |
|---|---|
| Model Number | PS1220-18 |
| Input Voltage | 187 – 253V Rated 3amp main fuse |
| Outputs | 16 x 12VDC Outputs |
| Maximum Output | 20 Amps |
| Auto Reset PTC Fuse for each Output | Maximum Per Output 1.6 Amps *Not exceeding 20 Amps Total Output* |
| Regulated Filtered | Yes |
| Surge Protected | Yes |
| Internal ON/OFF Power Switch | Yes |
| Individual LED Output Indicator | Yes |
| Dimensions | 9 x 21 x 24.5 cm |
| Weight | 3.2 Kgs |
| CE RoHS Compliant | Yes |
