Description

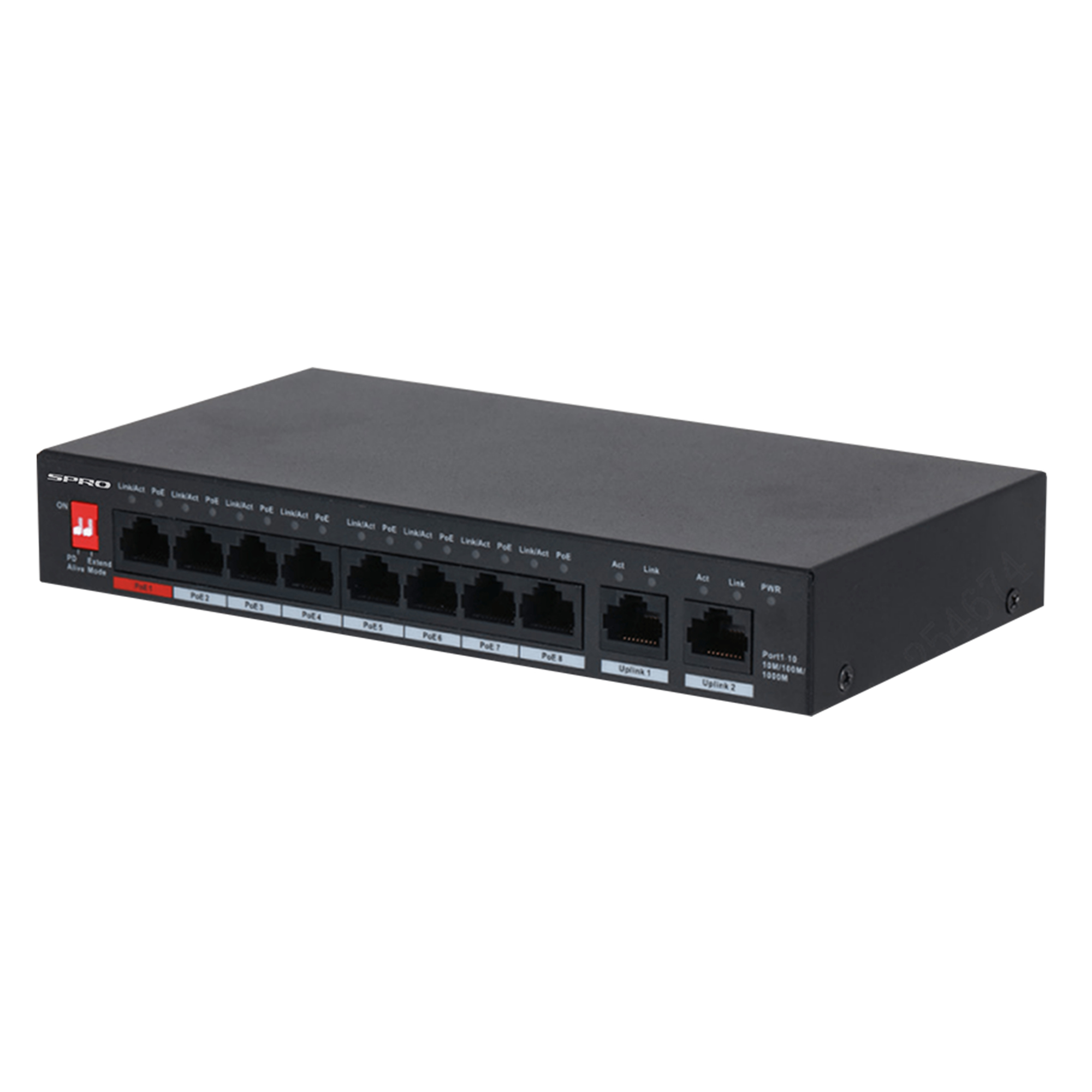

Elevate your network with the SPRO 8-Port Gigabit POE Switch. Designed for high speed, performance and reliability, this switch ensures seamless power and data transfer across multiple devices. Providing efficient PoE capabilities for IP cameras, phones, and more. The integrated 2 uplink ports and clear LED indicators offer added convenience for all your connectivity needs. Experience smooth and uninterrupted operations with the power of SPRO.
Key Features
- Intelligent PoE
- 8-pin assignment PoE power supply
- Long distance PoE
- PoE watchdog
- BT 90W
- All-giga ports
- Wide working temperature
| Specifications: | |
|---|---|
| Model Number | SWITCH-8P-1K |
| Hardware | |
| Data Transmission Port | Port 1–8: 8 × RJ-4510/100/1000 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink) |
| Power Supply | 48 V – 57 V DC |
| Operating Temperature | –10 °C to +55 °C (+14°F to +131°F) |
| Operating Humidity | 5% – 95% (RH) |
| Storage Temperature | –20 °C to +70 °C (–4°F to +158°F) |
| Storage Humidity | 5% – 95%(RH) |
| Power Consumption | Idling: 3 W; Full load: 96 W |
| Performance | |
| Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Packet Buffer Memory | 1.5Mbit |
| MAC Table Size | 4K |
| Communication Standard |
IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x
|
| PoE | |
|
PoE Standard
|
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
|
PoE Power
|
96 W |
| Power Consumption Management | Yes |
| PoE Pin Assignment | 1,2,4,5(V+),3,6,7,8(V-) |
| Long Distance PoE | 250m long distance PoE transmission |
| General | |
| Statics Protection | Air discharge: 8 kV – Contact discharge: 6 kV |
| Thunder -proof | Common mode: 4 kV – Differential mode: 2 kV |
| Net Weight | 0.50 kg (1.10 lb) |
| Gross Weight | 1.32 kg (2.91 lb) |
| Product Dimensions | 190 mm × 100 mm × 30 mm (7.48″ × 3.94″ × 1.18″) |
