Description

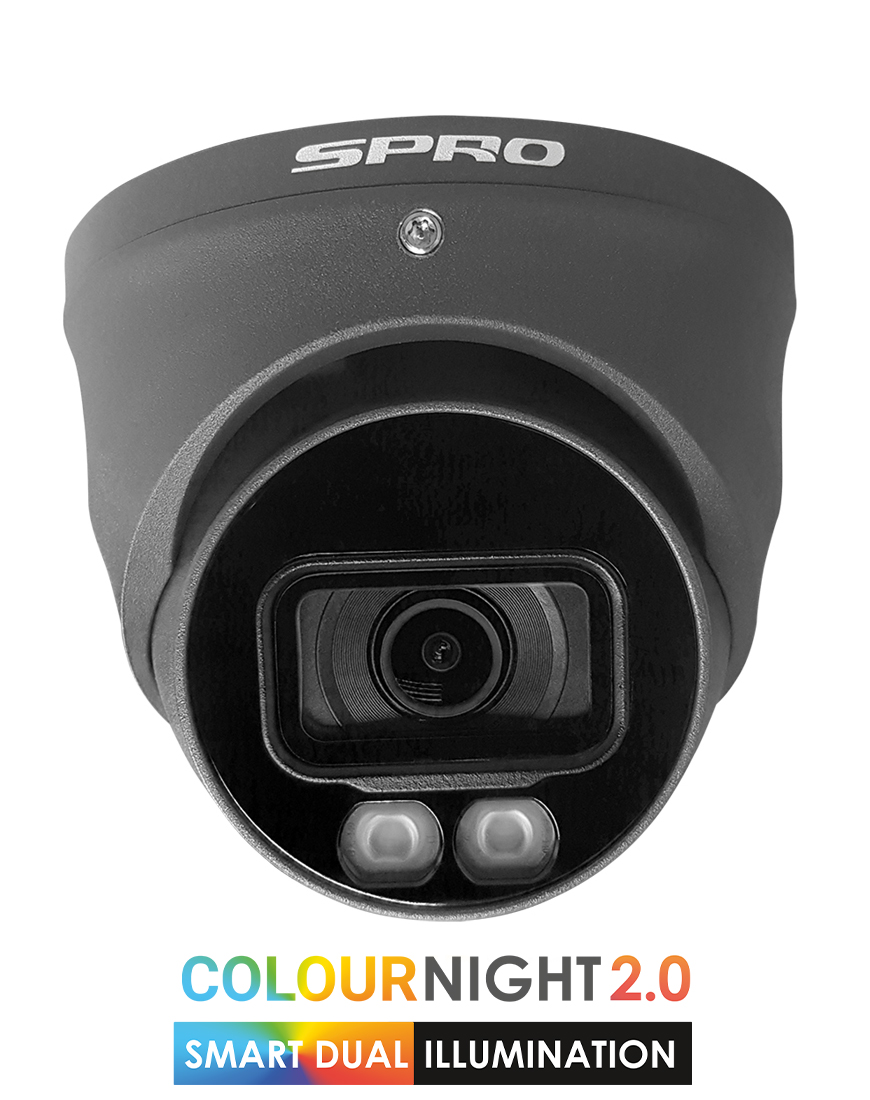

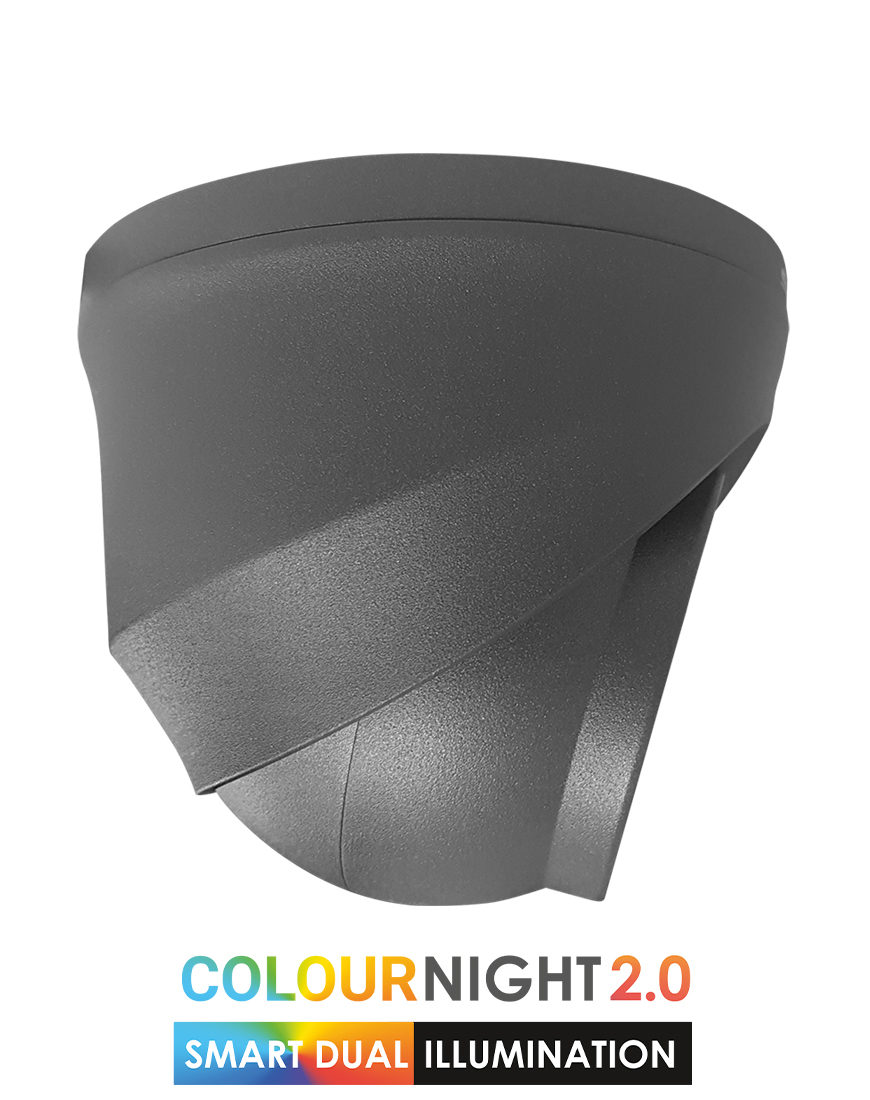

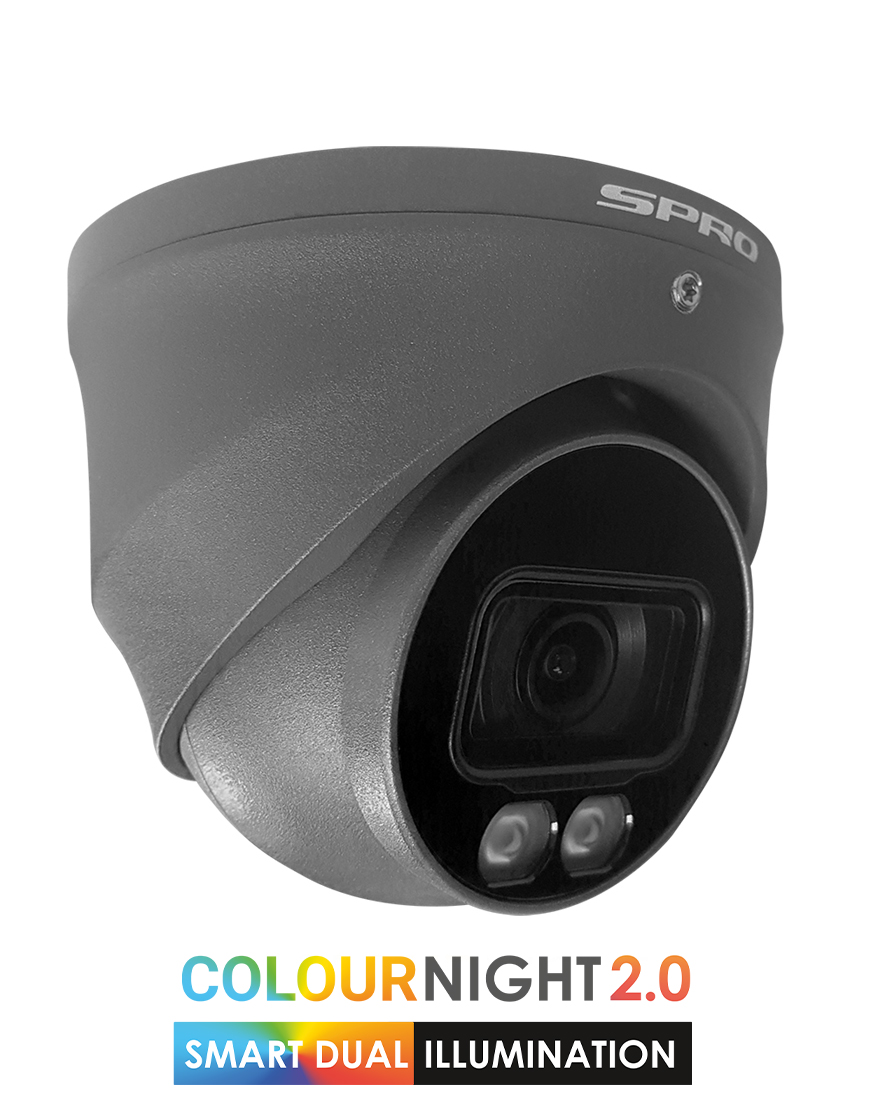

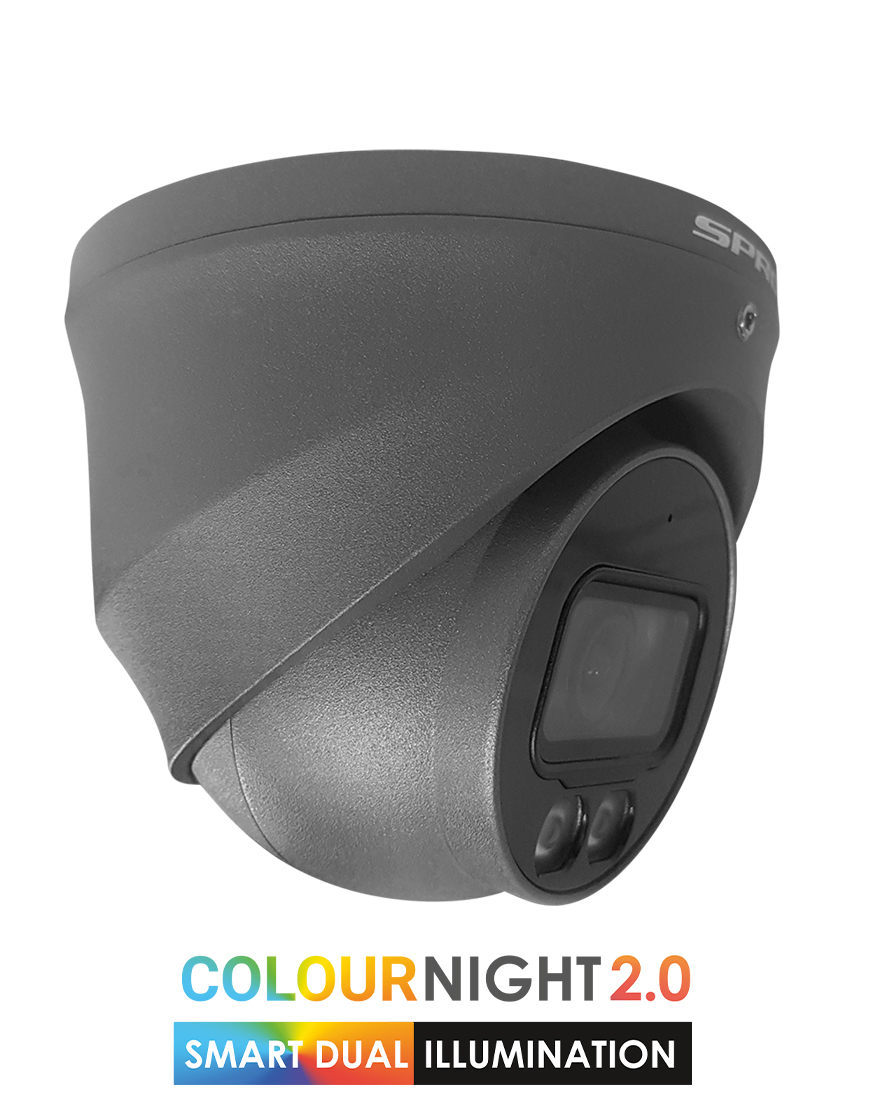

The SPRO ColourNight range of cameras are designed to allow the camera to see full colour images at night. These cameras feature white light LEDs that illuminate the scene.
The second generation SPRO ColourNight cameras also have built-in IR. This IR can produce standard black and white night images throughout the night, freeing up the white light LED to only activate when it detects motion – causing a security light effect. However, the cameras can still be used in the same way as the previous generation – with its white light on continuously throughout the night – if needed.
| Specifications: | |
|---|---|
| Model Number | DHD80/28LRG-4-M |
| Camera | |
| Image Sensor | 4K CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.01 lux@F2.0 (Colour, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | IR: 40 m (131.23 ft); Warm light: 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 2 (Warm light); 2 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 111°; V: 58°; D: 132° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8mm: 1.3 m (4.27 ft) |
| DORI Distance |
Detect: 88 m (288.71 ft) Observe: 35.2 m (115.49 ft) Recognise: 17.6 m (57.74 ft) Identify: 8.8 m (28.87 ft) |
| Video | |
| Video Frame Rate | CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day / Night | Auto(ICR)/Colour/B/W |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto; Area white balance |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR & WL; WL Mode; IR Mode |
| Defog | Electronic defog |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in MIC |
| Power | |
| Power Supply | 12 VDC ± 15% |
| Power Consumption | Max 5.7 W (12 VDC, LED on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Low |
| Certification | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | φ106.0 mm × 99.2 mm (φ4.17″ × 3.91″) |
| Net Weight | 0.47 kg (1.04 lb) |
| Gross Weight | 0.69 kg (1.52 lb) |
