Description

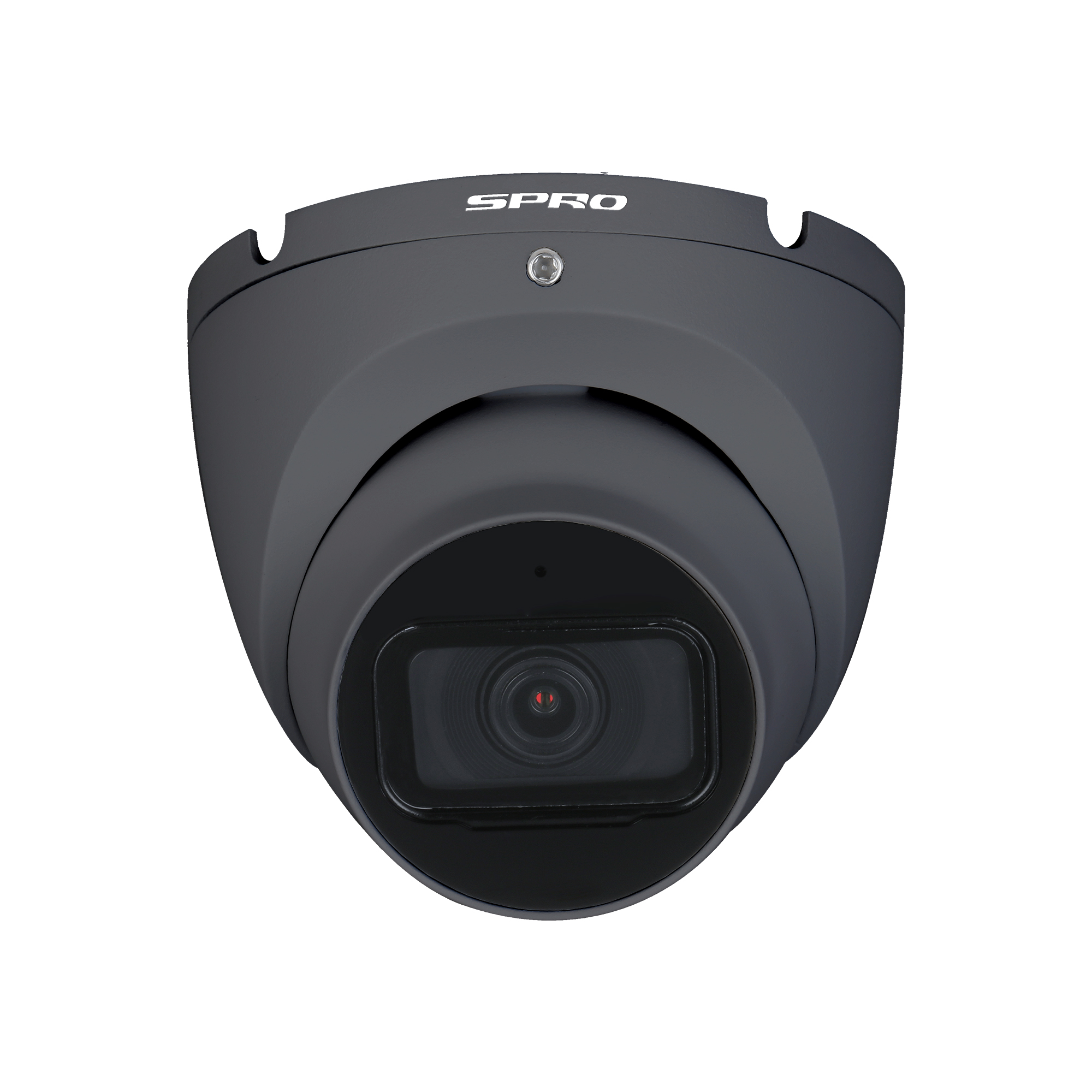

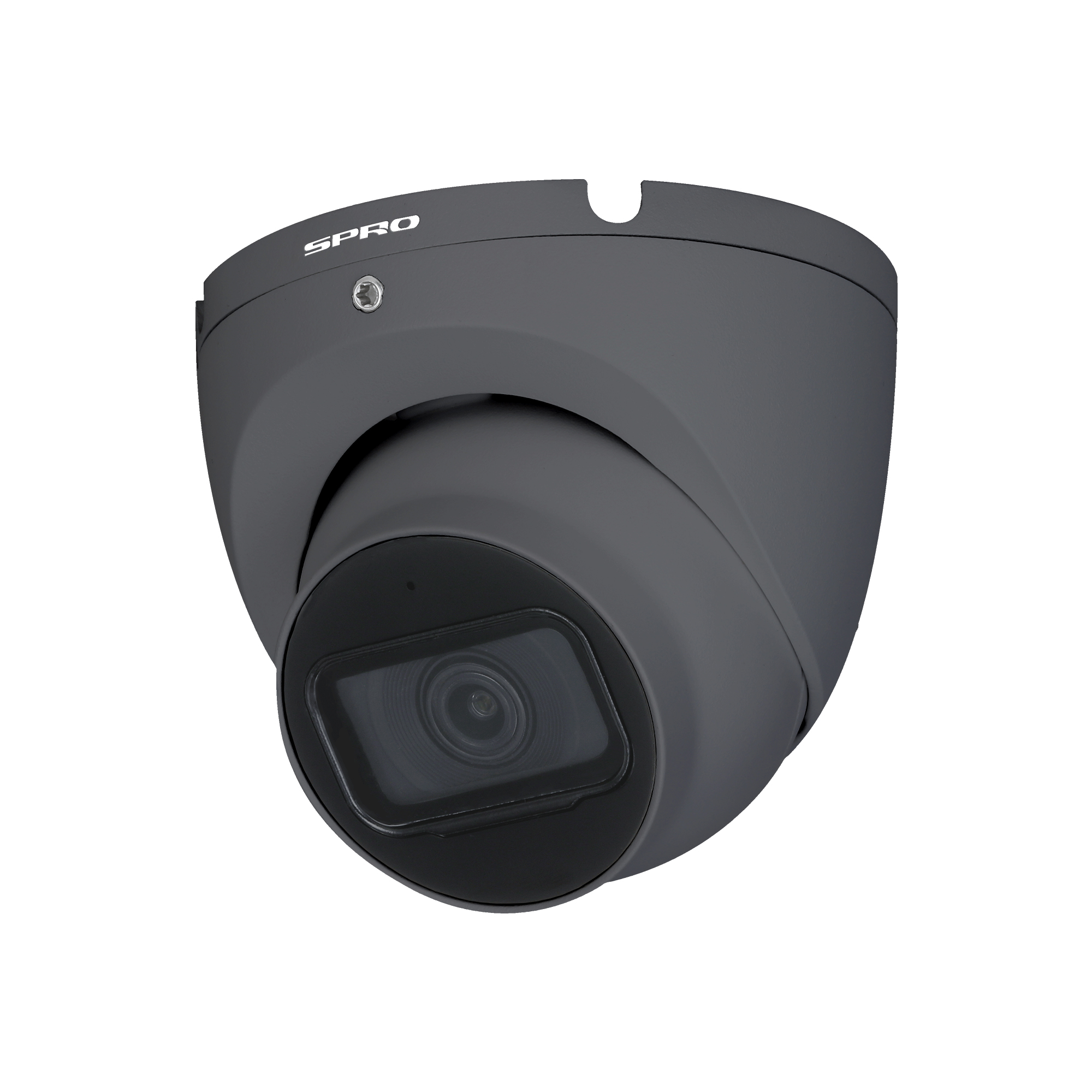

Enhance your security with the SPRO 8MP Fixed Lens Turret Camera (DHD80/28RG/30-4-M), featuring a built-in microphone for clear audio surveillance. Capture both high-resolution video and audio details.
Key Features
- Max. 4K resolution
- CVI/CVBS/AHD/TVI switchable
- 2.8 mm fixed lens
- Built-in Mic
- Max. IR length 30 m, Smart IR
- IP67, DC12V
| Specifications: | |
|---|---|
| Model Number | DHD80/28RG/30-4-M |
| Camera | |
| Image Sensor | 1 / 2.7 inch CMOS |
| Max. Resolution | 3840 (H) x 2160 (V) |
| Pixel | 8 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100, 000s; NTSC: 1/30 s–1/100, 000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.03 Lux/ F2.0, 30 IRE, 0 Lux IR on |
| Illumination Distance | 30 m (98.4ft) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR light) |
| Pan / Tilt / Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | H:105° V:56° D:125° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0 m (3.3 ft); |
| DORI | Detect: 75m (246.1 ft) Observe: 30m (98.4 ft) Recognise: 15m (49.2 ft) Identify: 8m (26.2 ft) |
| Day / Night | Auto switch by ICR |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/ On |
| Privacy Masking | Off / On (8 area, rectangle) |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in Mic |
| Power | |
| Power Supply | 12V ±15% DC |
| Power Consumption | Max 4.3 W (12V DC, IR on) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | φ94.0 mm × 85.7 mm (φ3.70″ × 3.37″) |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.47 kg (1.04 lb) |
