Description

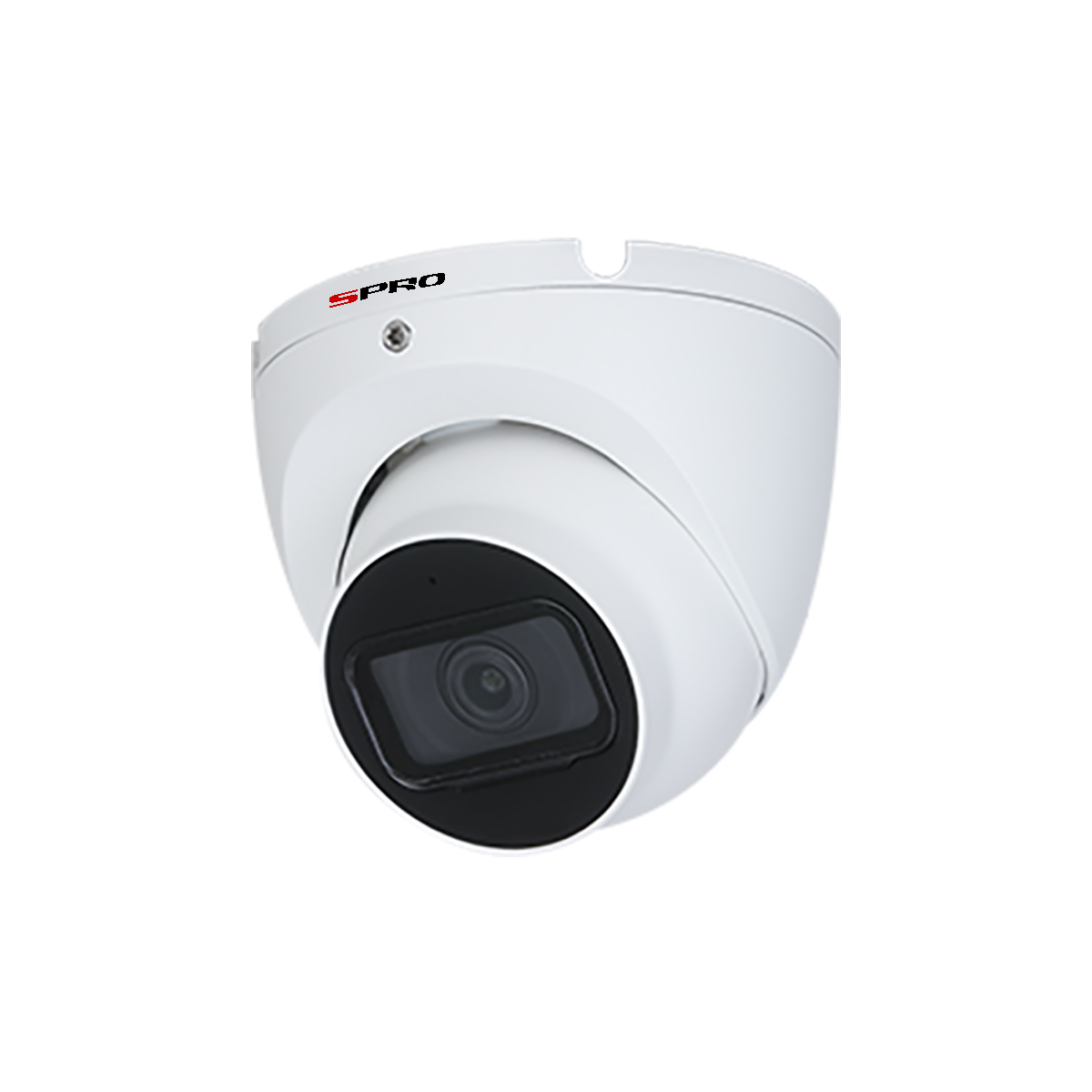

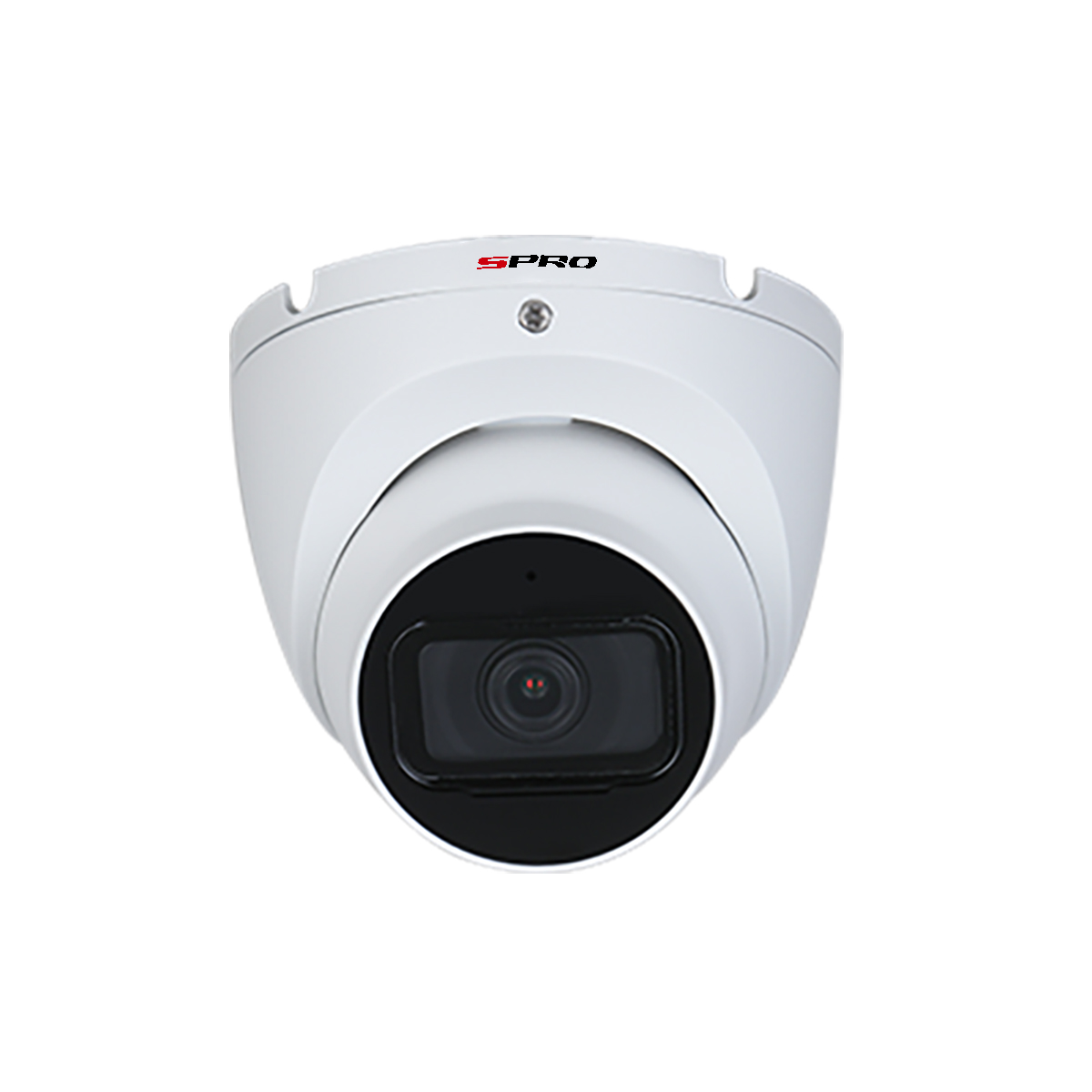

Upgrade security with the SPRO 8MP Fixed Lens Turret Camera.
This remarkable camera boasts an astounding 4K maximum resolution, ensuring that every detail is captured with breathtaking clarity.
Supporting multiple video formats, including CVI, CVBS, AHD and TVI makes integration into existing systems seamless.
With a built-in microphone that captures crystal-clear audio, it also has exceptional night vision and a maximum IR distance of 30 metres.
Key Features
- Max. 4K resolution
- CVI/CVBS/AHD/TVI switchable
- 2.8 mm fixed lens
- Built-in Mic
- Max. IR length 30 m, Smart IR
- IP67, DC12V
| Specifications: | |
|---|---|
| Model Number | DHD80/28RW/30-4-M |
| Camera | |
| Image Sensor | 1 / 2.7 inch CMOS |
| Max. Resolution | 3840 (H) x 2160 (V) |
| Pixel | 8 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100, 000s; NTSC: 1/30 s–1/100, 000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.03 Lux/ F2.0, 30 IRE, 0 Lux IR on |
| Illumination Distance | 30 m (98.4ft) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR light) |
| Pan / Tilt / Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | H:105° V:56° D:125° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0 m (3.3 ft); |
| DORI | Detect: 75m (246.1 ft) Observe: 30m (98.4 ft) Recognise: 15m (49.2 ft) Identify: 8m (26.2 ft) |
| Day / Night | Auto switch by ICR |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/ On |
| Privacy Masking | Off / On (8 area, rectangle) |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in Mic |
| Power | |
| Power Supply | 12V ±15% DC |
| Power Consumption | Max 4.3 W (12V DC, IR on) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | φ94.0 mm × 85.7 mm (φ3.70″ × 3.37″) |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.47 kg (1.04 lb) |
