Description

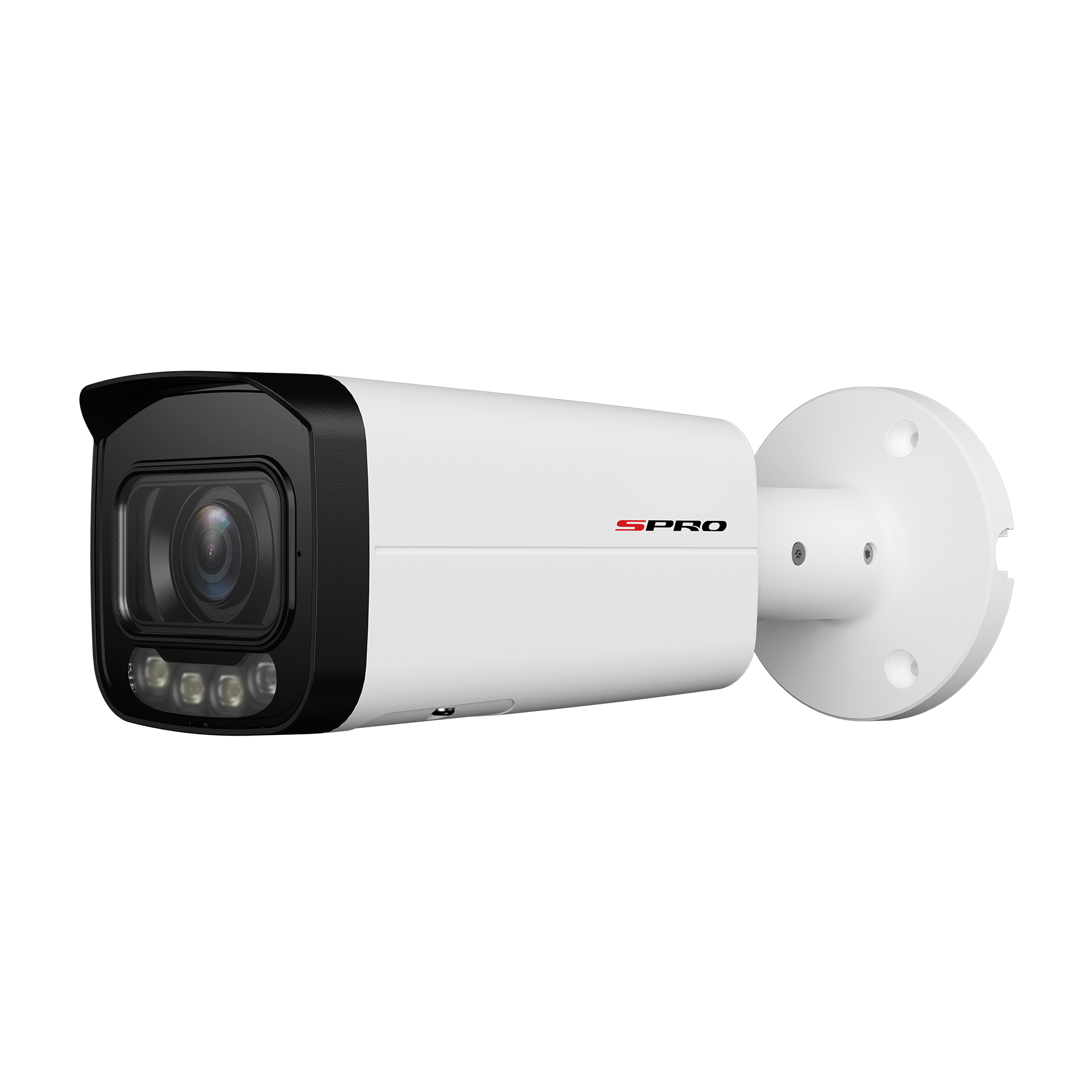

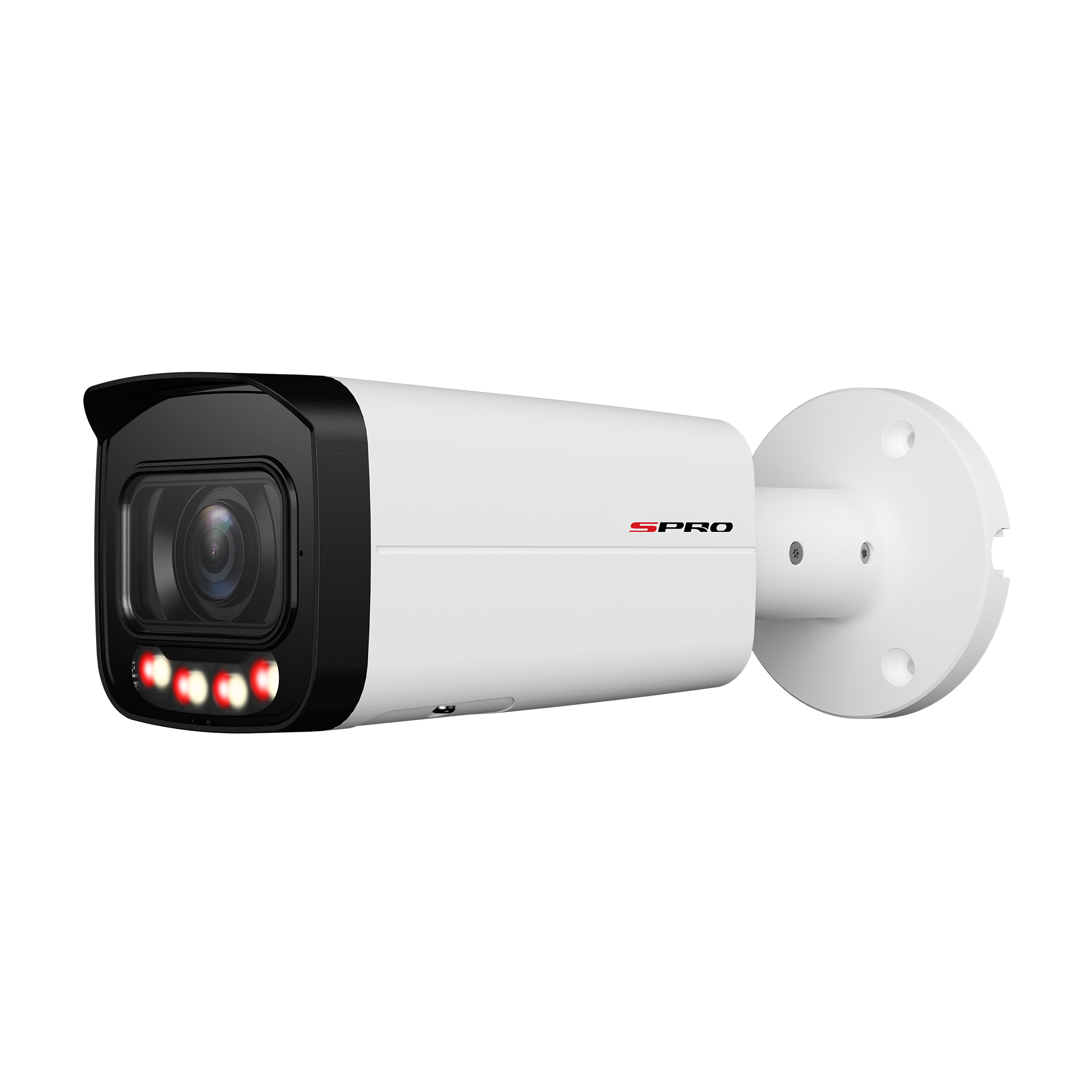

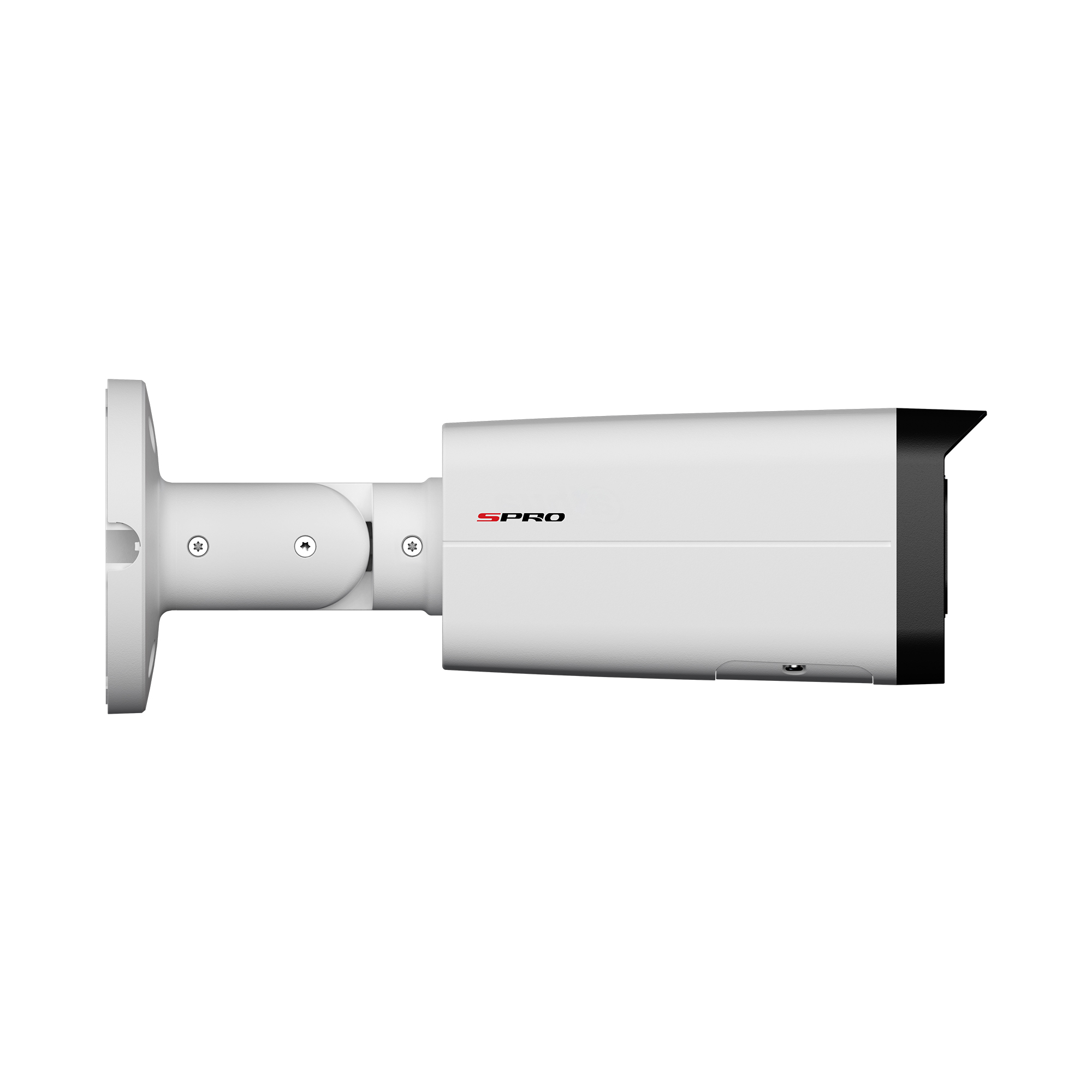

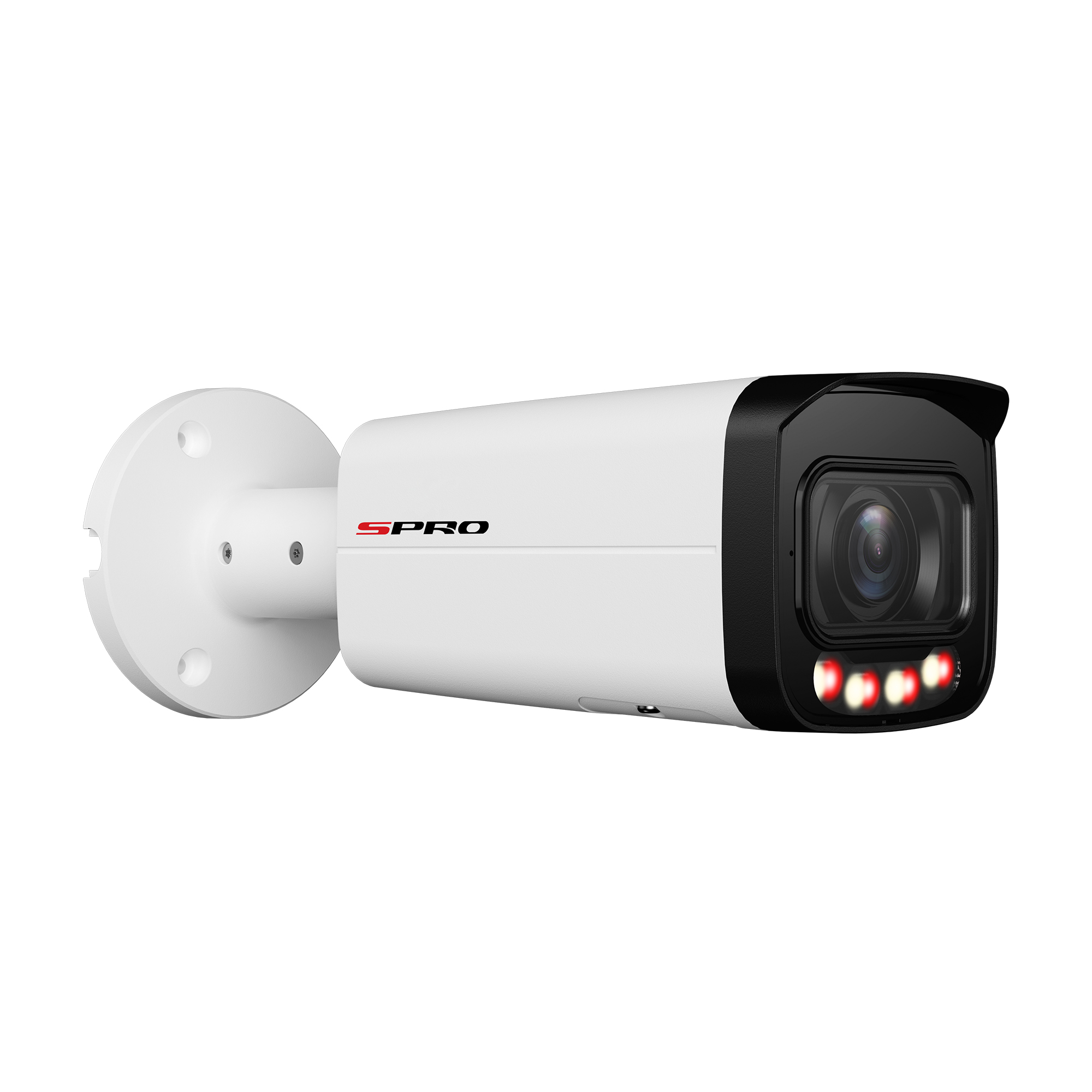

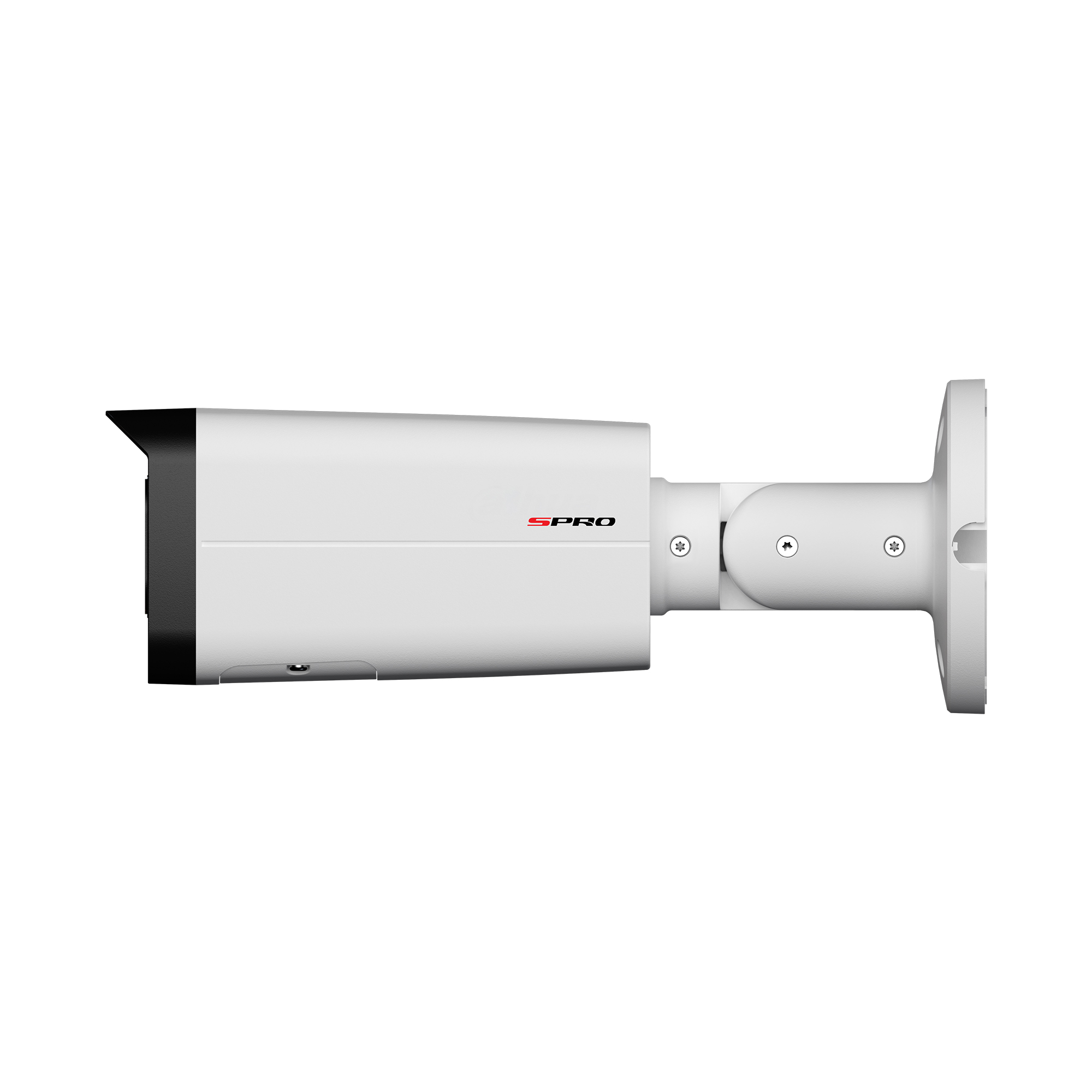

The SPRO DHIPQ80/ALRW-M is a high-performance 8MP IP bullet camera designed for professional-grade surveillance in commercial and industrial environments. Featuring a motorised lens, integrated microphone, and dual illumination, this camera delivers outstanding clarity and adaptability across a range of monitoring applications.
Powered by an advanced deep learning algorithm, the camera supports intelligent features including perimeter protection and smart motion detection (SMD+), enabling precise identification of human and vehicle targets while reducing false alarms.
With starlight technology, the DHIPQ80/ALRW-M delivers exceptional low-light performance, ensuring vivid and detailed imagery even in near-dark conditions. Combined with 60m IR and warm light range, it guarantees full-scene visibility around the clock.
Key Features:
– H.265
– 8 Megapixel
– 2.7 mm–13.5 mm Motorised Lens
– Microphone built-in
– Classification of Human & Vehicle
– Warm Light Range: Up to 60m
– IR range: Up to 60m
– Perimeter Protection
– SMD+
– 120dB WDR
– Metal Housing
– IP67 Waterproof
– 12 VDC / POE
| Specifications: | |
|---|---|
| Model Number | DHIPQ80/ALRW-M |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 3840 (H) × 2160 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 lux@F1.5 (Colour, 30 IRE) 0.0008 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | ＞56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR); Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto/ Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360° |
| Lens | |
| Lens Type | Motorised vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 114°–32°; V: 58°–17°; D: 138°–36° |
| Iris Type | Fixed |
| Close Focus Distance | 1.5 m (4.92 ft) |
| DORI Distance | W Detect: 85.3m │Observe: 34.1m │Recognise: 17.1m │ Identify: 8.5m
T Detect: 280m │Observe: 112m │Recognise: 56m │ Identify: 28m |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| SMD | SMD Plus |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate |
Main stream: 3840 × 2160@(1–20 fps)/2688 ×1520@(1–25 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–25fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 Streams |
| Resolution | 8M (3840×2160); 6M (3072×2048); 5M (3072×1728); 4M (2880×1620/2688×1520); 3M (2048×1536/2304×1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240) |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR) / Colour/ B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D NR |
| Motion Detection | Off / On (4 Areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Rotation | 0°/ 90°/ 180°/ 270° (Support 90°/270° with 2688×1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP
conflict; illegal access; motion detection; video tampering; tripwire;
intrusion; audio detection; voltage detection; SMD; security exception
|
| Network | |
| Network | RJ-45 (10/100Base-T) |
| SDK and API | Yes |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP;
SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P;
auto registration
|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Cloud; NAS |
| Browser | IE, Chrome, Firefox |
| Management Software | DMSS |
| Mobile Phone | iOS & Android |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
| Certification | |
| Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
|
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| General | |
| Power Supply | 12 VDC; PoE (802.3af) |
| Power Consumption | Basic: 2.6 W (12 VDC), 3.1 W (PoE); Max.: 10.2 W (12 VDC), 12.7 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) |
| Operating Conditions | -–40 °C to +55 °C (–40 °F to +131 °F) / ≤95% RH |
| Storage Conditions | -40ºC ~ +60ºC (-40ºF ~ +140ºF) / ≤95% RH |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 198.9 mm × 80.2 mm × 76.2 mm (7.83″ × 3.16″ × 3.00″) (L × W × H) |
| Net Weight | 0.54 kg (1.19 lb) |
| Gross Weight | 0.68 kg (1.50 lb) |
