Description

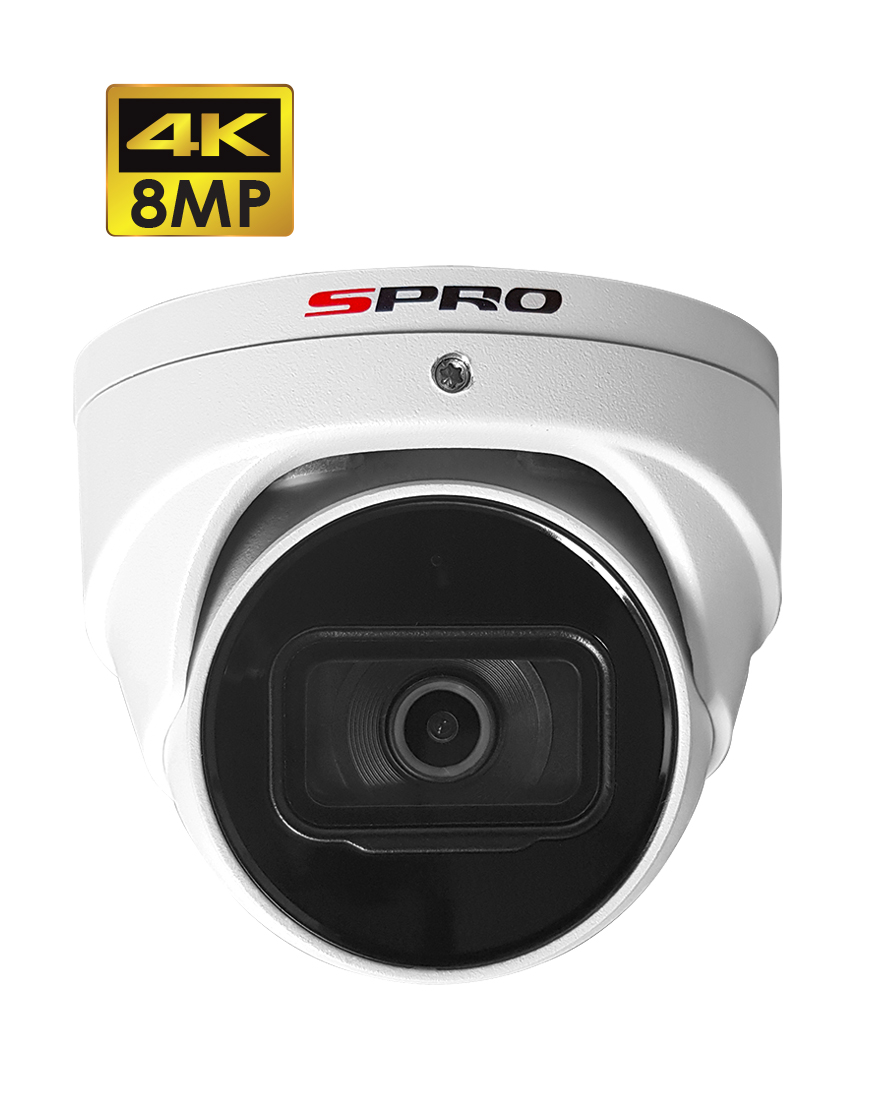

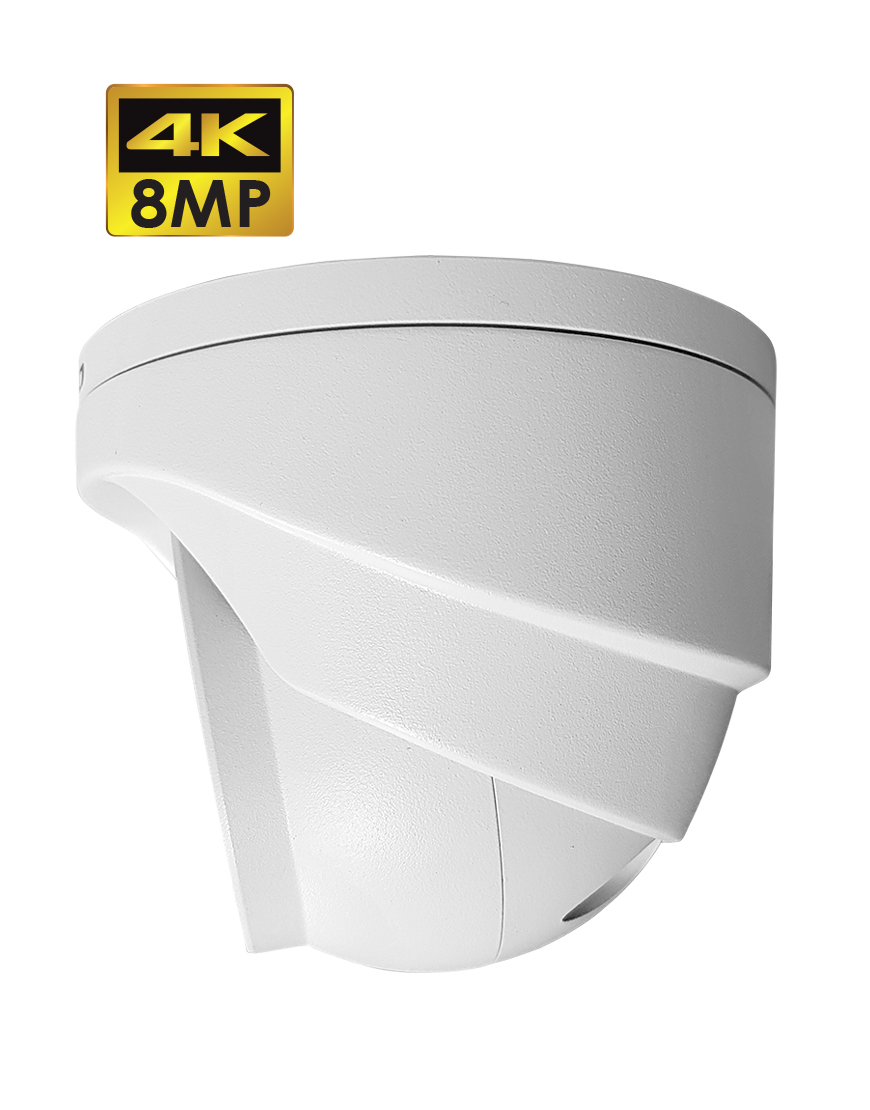

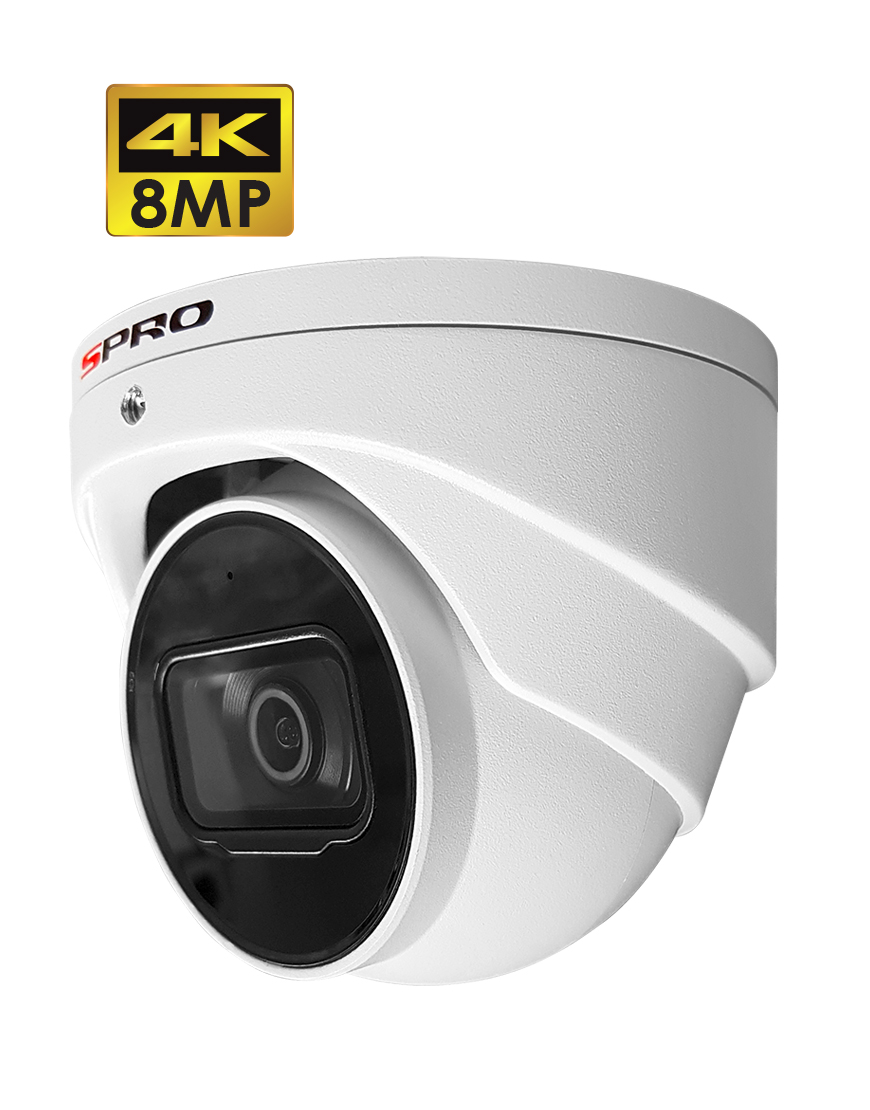

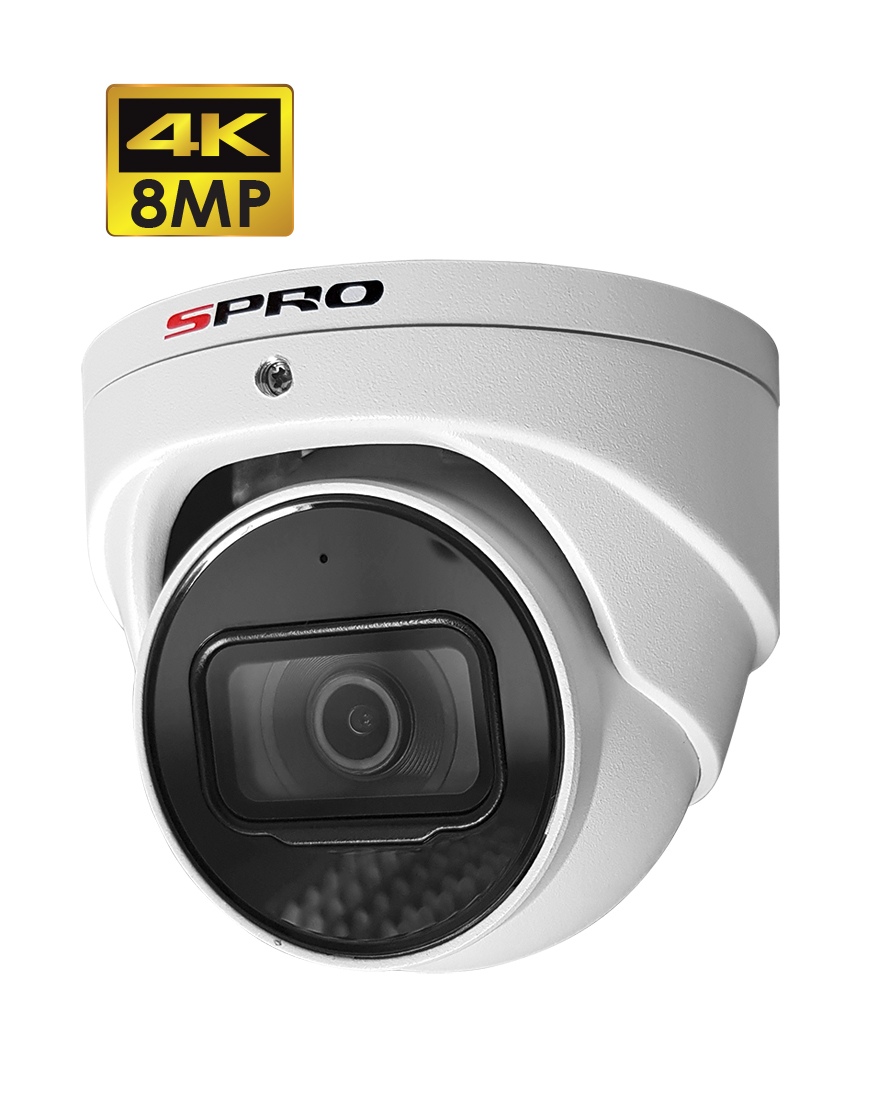

The SPRO 8MP IP Motorised Lens Turret is a leading-edge surveillance camera that offers exceptional performance. With Starlight technology, this camera offers colour images in low-lighting environments and is equipped with 40m IR for excellent night vision capabilities.
The camera is designed to withstand outdoor environments with its IP67 rating, making it waterproof and resistant to dust and debris. The motorised lens turret allows for easy adjustments and precise focusing, ensuring optimal image quality.
| Specifications: | |
|---|---|
| Model Number | DHIPD80/ARW/40M-T |
| Image Sensor | 1/2.7” 8Megapixel progressive CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Min. Illumination | 0.008 Lux@F1.5 |
| IR Distance | Up to 40m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Motorized |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Pan: 113°-31° × Tilt: 58°-17°; × Diagonal: 138°-36° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m |
| DORI Distance | Detect: 85.3-280 m Observe: 34.1-112 m Recognize: 17-56 m Identify: 8.5-28 m |
| Pan/Tilt/Rotation | |
| Pan/Tilt/Rotation Range | Pan:0˚~360˚, Tilt:0˚~78˚, Rotation:0˚~360˚ |
| Intelligence | |
| IVS | Tripwire, Intrusion |
| Advanced Intelligent Functions | N/A |
| Video | |
| Compression | H.265+/ H.265/ H.264+/ H.264 |
| Streaming Capability | 2 Streams |
| Resolution | 3840 × 2160; 3072 × 2048; 3072 ×1728; 2592 × 1944; 2688 × 1520; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate-Main Stream | 3840 × 2160 (1 fps–15 fps); 2688 × 1520 (1 fps–25fps) |
| Frame Rate-Sub Stream | 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps) |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.264: 32 Kbps– 8192 Kbps H.265: 12 Kbps– 8192 Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(120dB) |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor/ Manual/ regional custom |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Areas, Rectangle) |
| Region of Interest | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/ 90°/ 180°/ 270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression | N/A |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Interoperability | ONVIF, CGI, P2P, Milestone, Genetec |
| Max. User Accessr | 20 Users |
| Edge Storage | NAS / Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | SPRO CSS |
| Smart Phone | iPhone, iPad & Android |
| General | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | <7.6W |
| Operating Conditions | -30ºC ~ +60ºC / Less than 95% RH |
| Storage Conditions | -30ºC ~ +60ºC |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 89.23mm × Φ105.0mm |
| Net Weight | 0.365Kg |
| Gross Weight | 0.527Kg |
