Description

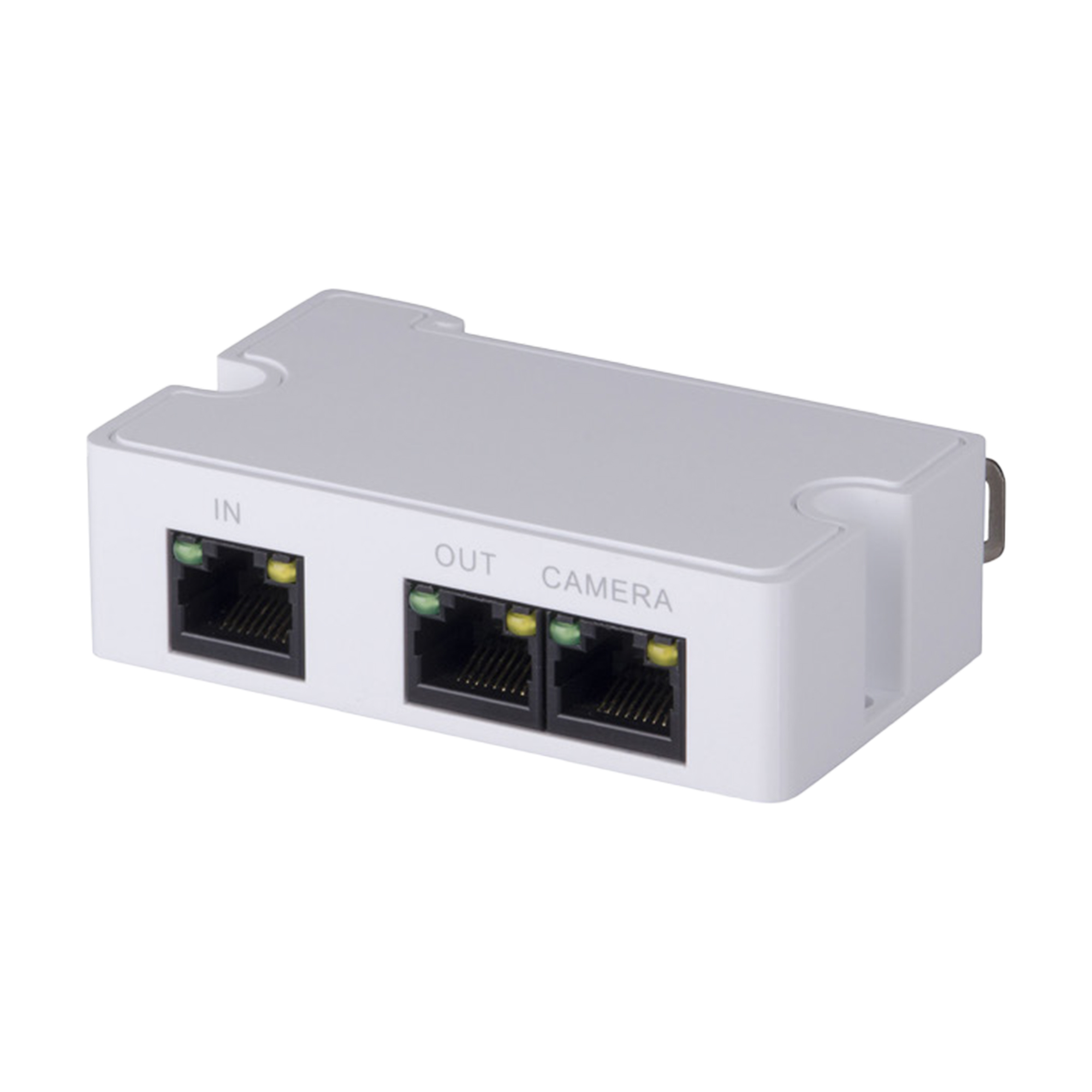

The SPRO PoE (Power over Ethernet) Extender is a versatile device designed for streamlined connectivity. Plug and Play with no configuration required.
It seamlessly supports passive PoE providing full-rate network throughout the whole extended distance.
Part Number
- POEEXTENDER-01
IP Accessories
- POE Extender
Key Features
- Support passive PoE cascade power supply and Ethernet data exchange
- Support IEEE 802.3af/at standard power supply IP Camera
- 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M
- Supply power for the next extender
- Installation mode: junction box internal mounting, DIN rail mounting
| Specifications: | |
|---|---|
| Model Number | POEEXTENDER-01 |
| Compliance | 1*10/100 Base-T PoE power receiving port 1*10/100 Base-T PoE power supply port, supply power for the next extender 1*10/100 Base-T PoE power supply port, supply power for IPC |
| Transmission Distance | 100m |
| Power Consumption | <=3W |
| Application Humidity | 10%~90% |
| Working Temperature | 30°C~65°C |
| Weight | 57g |
| Dimensions (WxDxH) | 79mm×52mm×23mm |
