SPRO 8MP HDCVI Fixed Lens Turret With Built-In Microphone

SPRO 8MP HDCVI Fixed Lens Turret With Built-In Microphone

Name: SPRO 8MP HDCVI Fixed Lens Turret With Built-In Microphone
SKU: DHD80/28RW/50M-4-M
Availability: InStock

~~£70.00 £70.00 Ex VAT~~ £63.00 £63.00 Ex VAT

Part Number: DHD80/28RW/50M-4-M
Brand: SPRO
Colour White
Housing Style Turret
Camera Resolution 8 Megapixel
Lens Type Fixed
Lens Size 2.8 mm
ColourNight No
Illumination Type IR
IR Light Distance up to 50m
Ingress Protection IP67
Video Protocol 4 in 1
Built-in Mic Yes
Starlight Yes
WDR 120dB
POC No

SKU: DHD80/28RW/50M-4-M Categories: Analog Cameras, CCTV Cameras

Description

Spread the love

The DHD80/28RW/50M-4-M can capture 4k footage and offer up to 50m IR with a built-in microphone to utilise the audio over co-ax. Feature with compatible recorders.

Audio over co-ax allows the camera to transmit audio picked up from its built-in microphone and transmit this over the came co-ax cable as the video transmission. An audio over co-ax compatible recorder is required to fully utilise this function and would allow audio on each channel an audio over co-ax camera is on.

Due to the sensitivity of these cameras you may occasionally get some interference from the power supply. We recommend that you use either a 3amp ungrounded power supply or, if using a box power supply, one of the dedicated isolators.

Specifications:
Model Number	DHD80/28RW/50M-4-M
Image Sensor	1/2″ CMOS
Effective Pixels	3840(H)×2160(V), 8MP
Scanning System	Progressive
Electronic Shutter Speed	1/4s~1/100000s
Min. Illumination	0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
Max. IR distance	Up to 50m
IR On/Off Control	Auto/ Manual
IR LEDs	2
Lens
Lens Type	Fixed lens
Mount Type	Board-in
Focal Length	2.8mm
Max Aperture	F1.6
Angle of View	H:87°
Focus Control	N/A
Close Focus Distance	1800mm
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan:0˚~360˚ / Tilt: 0° ~ 70° / Rotation: 0° ~ 360°
Video
Resolution	4K (3840 × 2160); 6M (3200 x 1800); 4M (2560 × 1440); 960H (960× 576/ 960 × 480)
Video Frame Rate	CVI: 4K@15fps; 6M@20fps; 4M@25fps;
Day/Night	Auto (ICR) / Manual
OSD Menu	Multi-language
BLC Mode	BLC / HLC / DWDR
WDR	120dB
Gain Control	AGC
Noise Reduction	2D/3D
White Balance	Auto / Manual
Smart IR	Auto / Manual
Interface
Audio Interface	1ch in & Built-in Mic (Directional)
General
Power Supply	DC12V±30%
Power Consumption	Max 8W (12V DC, IR on)
Operating Conditions	-30°C ~ +60°C / Less than 90% RH
Strorage Conditions	-30°C ~ +60°C / Less than 90% RH
Ingress Protection	IP66
Casing	Aluminium

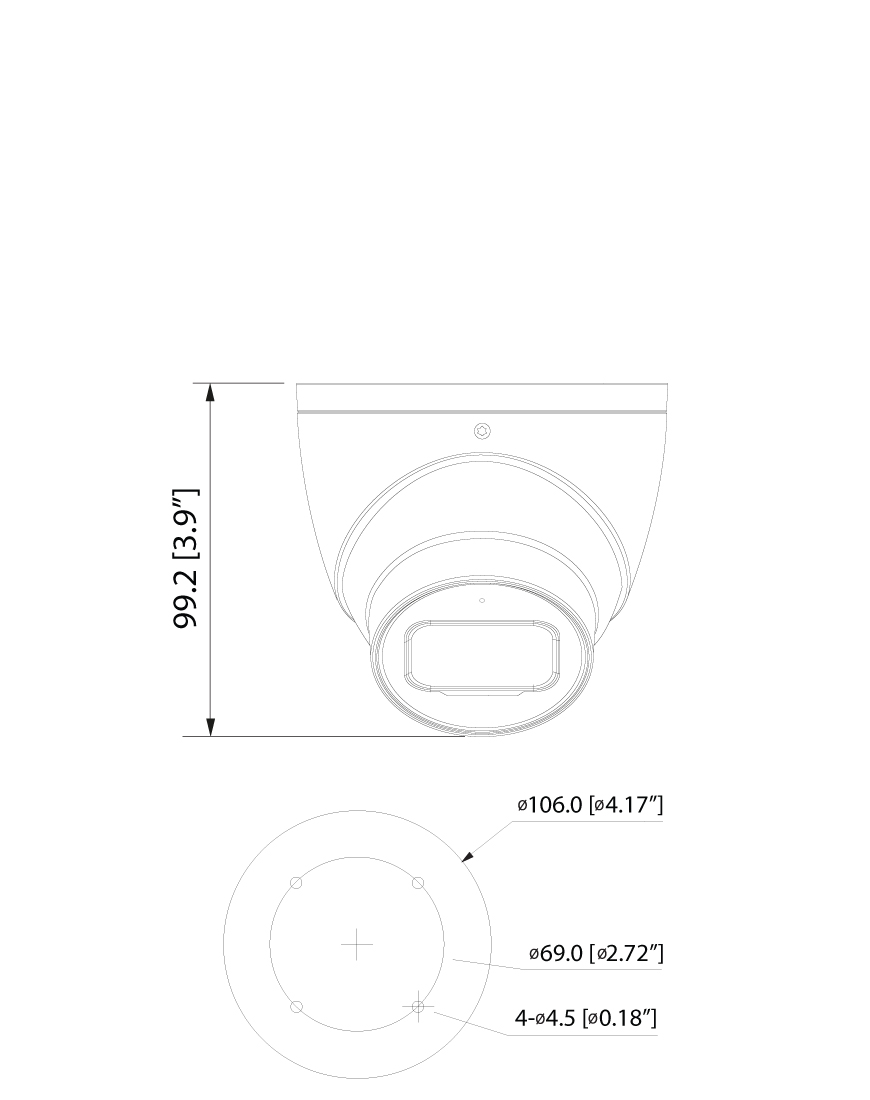

Dimensions	Φ106mm×99.2mm (Φ4.17″×3.9″)
Net Weight	0.5kg (1.10lb)
Gross Weight	0.62kg (1.37lb)
