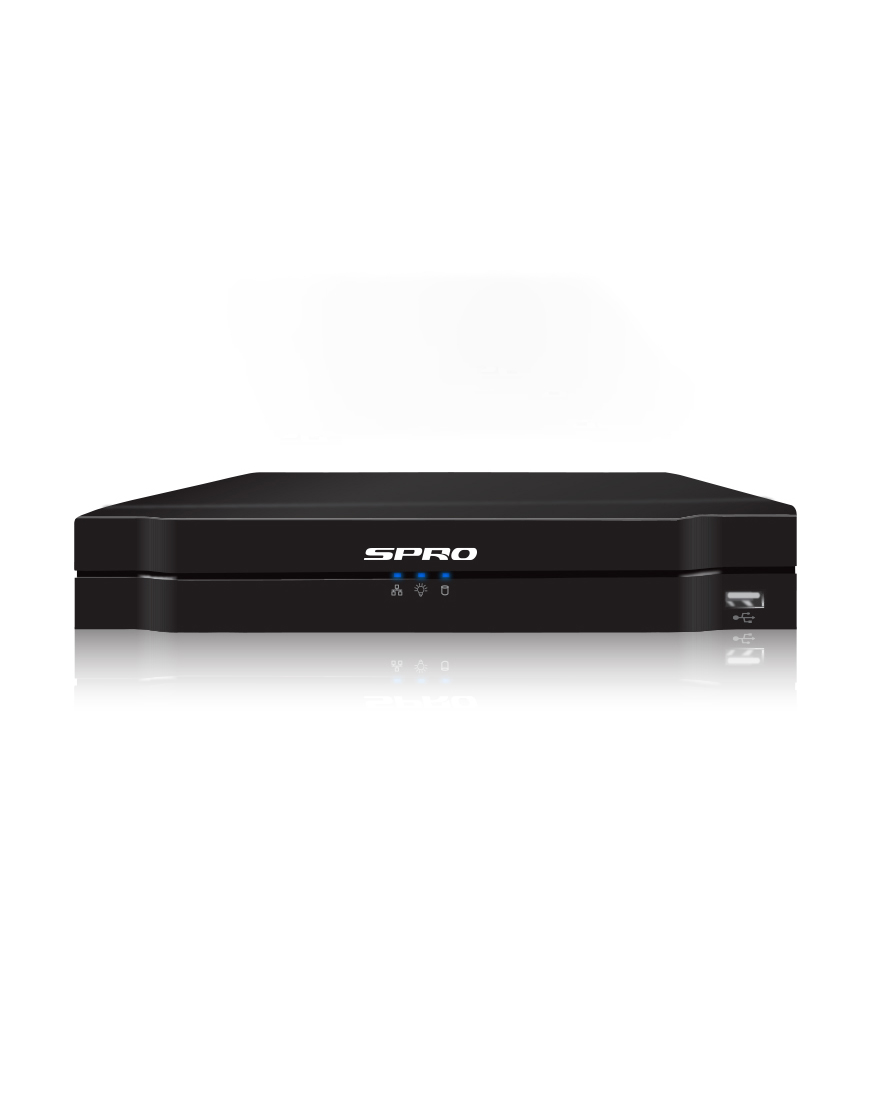

SPRO B6 8MP 8 Channels 5in1 with AI
SPRO B6 8MP 8 Channels 5in1 with AI

SPRO B6 8MP 8 Channels 5in1 with AI

Price range: £179.60 through £714.80
Price range: £161.64 through £643.32

Part Number:  DHDVR12-B6-V2-0TB
Brand:  SPRO
SMD  Plus
Perimeter Protection  Yes
Tripwire  Yes
Intrusion  Yes
Face Detection  Yes
Face Recognition  Yes
Recorder Resolution  8 Megapixel
BNC Channels  8 Channel
Extra IP Channels  8 Channel
Supports Dual Illumination  Yes
Hard Drive Bays  1

SKU: N/A Categories: ,

Description

Spread the love
Enhance your security with the SPRO B6 8MP 8-Channel 5in1 DVR (DHDVR12-B6-V2) equipped with AI technology. Experience advanced surveillance capabilities and intelligent monitoring for superior security.
Key Features
– H.265+ video compression
– 4K recording@7fps, 4MP@15fps, 1080P@25fps
– Supports up to 8MP on extra IP channels
– Supports “IP Audio over CAT5e” on extra IP channels (compatible cameras required)
– P2P(no port forwarding required)
– SMD PLUS (smart motion detection plus)
– Perimeter protection
– Intrusion & tripwire (human & vehicle classification)
– Face detection 2.0
– 2 way audio
– Push notification
– Spot monitoring via local network
Specifications:
Model Number DHDVR12-B6-V2
Main Processor Industrial-grade processor
Operating System Embedded LINUX
Operating Interface Web; Local GUI
Perimeter Protection
Performance
Advanced Model: 2 channels, 10 IVS for each channel General
Model: 8 channels, 10 IVS for each channel
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance
AI by Recorder		 2 channels (up to 12 face images/s)
Face Recognition
Face Database Capacity Up to 10 face databases and 20, 000 images
Face Recognition Performance
AI by Recorder		 2 channel
SMD Plus
SMD Plus by Recorder
8 channels: Secondary filtering for human and motor vehicle,
reducing false alarms caused by leaves, rain and lighting
condition change
Audio and Video
Analogue Camera Input 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@20 fps; 5 MP@25 fps;
4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps;
1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps;
1080p@25/30 fps; 720p@25/30 fps
IP Camera Input
Up to 16 channels of IPC access
8 IP channels by default + 8 channels (analogue channels are
converted to IP channels)incoming bandwidth: 128 Mbps, recording
bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
128 Mbps *After IP channels are added beyond the existing
channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
Main stream: 4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps);
4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H,
D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps–15fps);
D1/CIF@(1 fps–25/30fps)
Dual-stream Yes
Video Bit Rate 32kbps-6144kbps
Audio Sampling 8kHz, 16 bit
Audio Bit Rate 64kbps
Video Output 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access iOS; Android
Interoperability ONVIF 21.06
Browser Chrome, IE9 or later, Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Record Playback 1/4/9
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback,
smart playback (face and motion detection)
Alarm
General Alarm Motion detection, video loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, IP conflict, MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage
Record, snapshot (panoramic), IPC external alarm output,
access controller, voice prompt, buzzer, log, preset, email

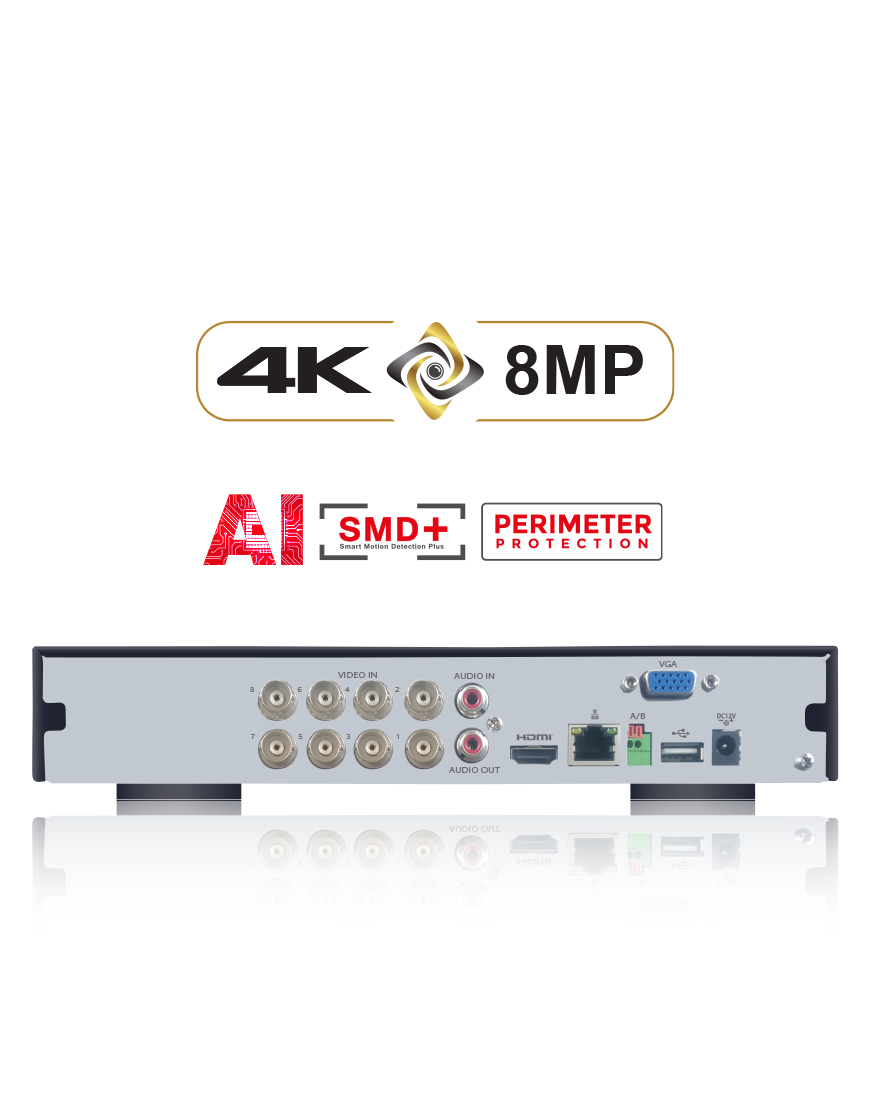

Ports
TV Output
1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Input 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface
1 SATA port, up to 16TB capacity for each disk. The maximum HDD
capacity varies with environment temperature.
RS-485 1 port, for PTZ control
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption <10 W (without HDD)
Net Weight 1.00 kg (2.21 lb)
Gross Weight 1.40 kg (3.09 lb)
Product Dimensions 260.0 mm × 237.9 mm × 47.6 mm (10.24” × 9.37” × 1.87”) (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 0%–90% (RH)
Installation Desktop
Certification
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2,
EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B

Download

Additional information

Hard Drive

No HDD, 1 TB, 2TB, 4 TB, 6 TB, 8 TB, 10 TB, 16 TB
