Description

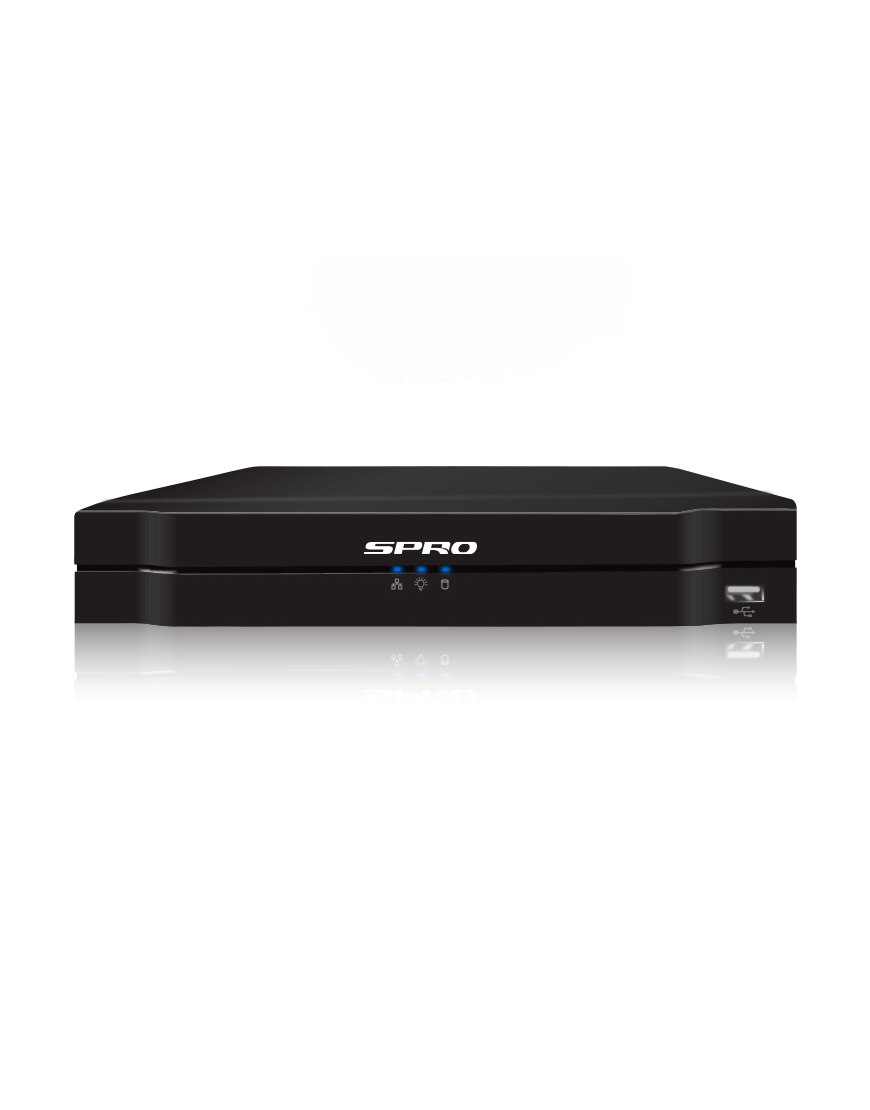

The SPRO B6 8MP 16 Channel 5in1 with AI combines advanced technology with a sleek design. Featuring Intrusion, Tripwire, Face Detection, Perimeter Protection, and Smart Motion Detection Plus all provide superior security and monitoring capabilities. With 16 BNC channels and the ability to add an additional 16 IP channels via the local network, it allows a total of 32 cameras to be displayed and recorded on the device.
| Specifications: | |
|---|---|
| Model Number | DHDVR24-B6-V3 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Performance | Advanced Model : 2 channels, 10 IVS for each channel General Model : 8 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance by recorder |
2 channel (up to 12 face images/s each channel) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases and 20, 000 images in total |
| Face Recognition Performance of AI by Recorder |
2 channel |
| Privacy Protection | |
| Privacy Protection Performance of AI by Recorder (Number of Channels) |
1 channel |
| SMD Plus | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 32 channels |
| AI Video Quality Analytics | |
| AI Video Quality Analytics by Recorder |
16 channels: Supports detecting brightness levels, colour cast, defocus, overexposure, contrast levels, black and white |
| Scene Changing | |
| Scene Changing by recorder |
1 channel |
| Irregular Black Block Masking | |
| Irregular Black Block Masking by Recorder |
1 channel |
| EPTZ | |
| EPTZ by Recorder | 1 channel |
| Quick Pick | |
| QuickPick 2.0 AI by Recorder (Number of Channels) |
2 channel |
| Audio and Video | |
| Analogue Camera Input | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input | Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analogue channels are converted to IP channels) Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used. |
| Encoding Capacity | Encode Enhancement disabled： Main stream: the 1st, 9th channel 4K@(1 fps–15 fps), others 4K@(1fps–7 fps); the 1st, 9th channel 6 MP@(1 fps–20 fps), others 6MP@(1 fps–10 fps); the 1st, 9th channel 5 MP@(1 fps–25 fps), others 5MP@(1 fps–12 fps); the 1st, 9th channel 4K-N/4 MP/3 MP@(1 fps–25/30fps), others 4K-N/4 MP/3 MP@(1 fps–15 fps); 4K@(1 fps–8 fps); 5 MP@(1 fps-15 fps);4M-N/1080p/ 720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)Encode Enhancement enabled： the 1st, 5th, 9th, 13th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st, 5th, 9th, 13th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st, 5th, 9th, 13th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st, 5th, 9th, 13th channel 4K-N/4 MP/3 MP@(1 fps–25/30 fps), others 4K-N/4 MP/3 MP@(1 fps–15 fps); 4K/6 MP@(1 fps–10 fps);5 MP@(1 fps-15 fps); 4M-N/ 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps) *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | IG.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
| Ports | |
| Audio Input | 1-channel RCA 16-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes ( share the same audio input with the first channel) |
| Disk Interface | 1 SATA port, up to 16TB. This limit varies depending on the environment temperature |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 3 A |
| Power Consumption | <15 W (without HDD) |
| Net Weight | 1.30 kg (2.87 lb) |
| Gross Weight | 2.10 kg (4.63 lb) |
| Product Dimensions | 325.0 mm × 257.1 mm × 55.0 mm (12.80″ × 10.12″ × 2.17″) (W × D × H) |
